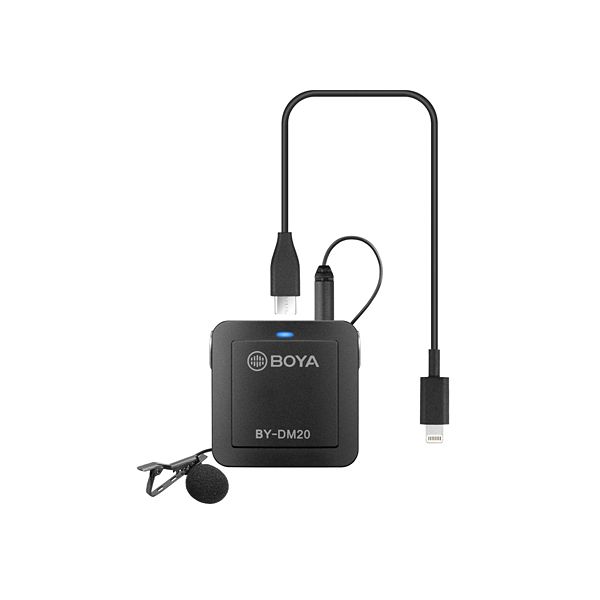

Boya BY-DM20 Dual-Channel Recording Kit

The Boya BY-DM20 is a multi-function recording kit with two mic-in/line-in audio inputs and one audio output. It’s a professional sound solution for iOS devices, Type-C Android devices and laptops. It can be used in a wide range of applications including interview, news production, ENG/EFP, film production, music recording, commercial and educational activities etc.

* All-in-one recording solution
* Compact and easy to use
* Dual-channel audio inputs
* Ideal for interview or other demands for capturing two subjects
* Stereo and Mono mode selectable
* Volume control for each channel separately
* 3.5mm Headphone output
* Compatible with iOS, Android (Type-C), laptop


Contents:
1x BY-DM20 Main body
1x Type-C to USB cable
1x Type-C to Type-C cable
1x Type-C to Lightning cable
2x Lavalier microphone
2x Foam windscreen
2x Clip for lavalier mic
1x Belt clip
1x Carry case

Specifications：
Frequency Response: 45Hz-20kHz
Gain: 0-30dB
Sampling Frequency: 44.1kHz /48kHz
Bitrate: 16Bit /24Bit
Power Requirements: Powered from the device
Output Connector: Type-C to Lightning, Type-C to USB, Type-C to Type-C
Cable Length: Mic Cable 2.0m, Output Cable 0.3m　


Download user manual from Attachments
