Boya BY-V35 2.4GHz Dual-Channel Wireless Microphone System for 3.5mm TRS Devices

The Boya BY-V3 series is an upgraded 2.4GHz dual-channel wireless microphone. Lightweight and portable, it comes with a charging case for all-day battery life. Featuring smart noise cancellation technology, it delivers clear and pure audio. With automatic pairing and plug-and-play functionality, it's perfect for daily content creation, news interviews, and remote discussions.

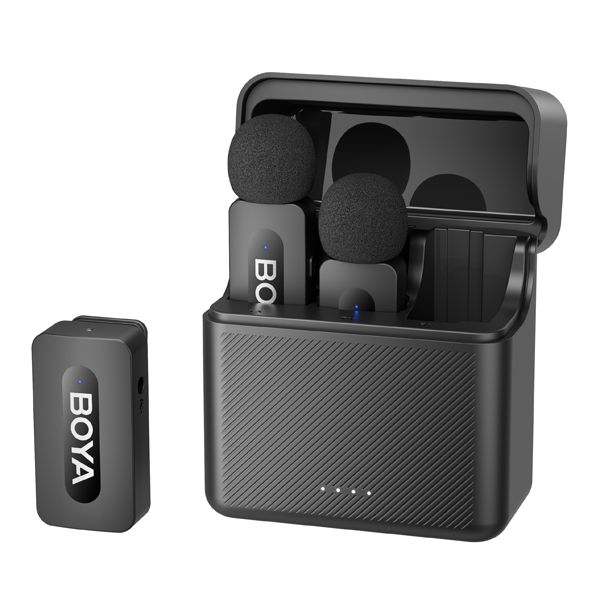

The BY-V35 includes two transmitters, one receiver and a charging case. Ideal for recording two people at the same time. The receiver comes with 3.5mm TRS output, making it compatible with cameras. A 3.5mm TRS to TRS audio cable in also provided to connect the 3.5mm TRS output to the microphone port of the camera. The receiver can also be connected to a phone via its USB-C data port using a correct data cable (not included).

Built for On-the-Go Recording
Sleek and lightweight, the mini microphone weighs only 10.5g, ensuring comfortable, hassle-free wear and allowing you to travel light. Simply clip it on and start recording anywhere.

Capture High-Quality Audio Effortlessly
The 360° rotatable clip gives you total flexibility to record hands-free from any angle – attached to tie, collar or cuff. Wear it your way and keep it stable in any position.

Omnidirectional Pickup
The sensitive mic records your voice from a 360° perspective.

All-Day Power You Can Count On
The transmitter is equipped with a 95mAh rechargeable battery and energy-efficient chip, delivering up to 9 hours of recording on a single charge. Focus on creating without worrying about battery life.

Portable Charging Case
The charging case offers convenient storage and provides up to 45 hours of power, making it perfect for long shoots, extended recording sessions or busy event days. Transmitters and receiver charge in just two hours.

Double Your Range
Compared to the previous V series, the transmission range has doubled to 100 meters, making it your perfect partner for long-distance recording in both indoor and outdoor environments. With advanced 2.4GHz wireless technology and 25ms ultra-low latency you can capture flawless audio.

Hi-Fi Sound Quality
Record professional-grade high-res audio with an 80dB signal-to-noise ratio and a 120dB maximum sound pressure level. The 48KHz/16bit audio format ensures every sound is captured with exceptional clarity and accuracy.

Click for Clear Audio
Boya's one-click noise cancellation technology effectively filters out background noise. Paired with a windshield, your voice will be crystal clear, whether you're on a bustling street or at a concert.

Hassle Free Operation
The transmitters and BY-V-RX receiver are pre-paired and will automatically pair with each other once powered on. The receiver mounts onto camera via the clip. Connect to camera using the included audio cable and the audio recorded by the transmitter will be transmitted to the camera. The receiver supports mono and stereo recording modes, providing flexibility for different recording scenarios.

Choose What Works for You
The Boya V-series includes single and dual channel options with USB-C, Lightning, and 3.5 mm TRS adapters for connecting your device. Choose what you need to save time and maximize efficiency.

Designed for Creators Who Demand More
Whether you're vlogging, live streaming, teaching online, attending virtual meetings, or podcasting, the Boya BY-V delivers reliable, professional-quality sound - hassle-free, wherever your content takes you.

* Compatible with devices with 3.5mm TRS connection
* 45-hour battery life with an upgraded charging case
* Stable line-of-sight range, doubled to 100m
* Versatile ports options, effortless compatibility
* One-click noise cancellation for crystal-clear sound
* Plug-and-play easy operation


Kit contents:
2x BY-V-TX Transmitter
1x BY-V-RX Receiver
1x BY-V-CCC Charging Case
1x USB-A to USB-C Cable
1x 3.5mm TRS to TRS Audio Cable
2x Foam Windshield
1x Carrying Bag

Specifications:

BY-V-TX Transmitter
Transmission Type: 2.4GHz
Modulation: GFSK
Polar Pattern: Omnidirectional
Antenna: PCB
Operating Range (without obstacle): Up to 100m
Distortion: ≤0.1%
Frequency Response: 20Hz-16kHz
Sensitivity: -42 dB
RF Output Power: ≤10dBm
Sampling Rate: 48kHz
Signal-to-Noise Ratio: 80dB
Audio Input: Built-in Capsule
Battery Voltage / Capacity: 3.7V / 95mAh
Power Supply: Built-in Li-ion battery
Battery Life:  Approx. 9 hours
Charging Time:  Approx. 2 hours
Weight:  Approx. 10.5g
Dimensions: 53.1 x 18.3 x 10.2mm
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +50°C

BY-V-RX Receiver
Transmission Type: 2.4GHz
Polar Pattern: Omnidirectional
Antenna: FPC
Operating Range (without obstacle): Up to 100m
Frequency Response: 20Hz-16kHz
Sampling Rate: 48KHz
Bit Rate: 16 bit
Signal-to-Noise Ratio: 80dB
Audio Output: 3.5mm TRS; USB-C data port
Charging Port: USB-C data port; charging contacts
Power Supply: Built-in lithium-ion battery
In-built Battery Capacity: 130mAh
In-built Battery Life: approx. 9 hours
Charging Time: approx. 2 hours
Weight: Approx. 14
Dimensions: 45 x 23.8 x 12.5mm
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +55°C

BY-V-CCC Charging Case
Battery Type: Built-in Li-ion battery
Battery Voltage / Capacity: 3.7V / 850mAh
Charging Time: Approx. 2 hours
Power Supply: USB-C (DC 5 V / 2 A)
Charge Cycle Times: approx. once (2*TX+1*RX)
Weight:  Approx. 95g
Dimensions: 70 x 38.5 x 79.8
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +55°C

Download user manual from Attachments
