Boya BY-WM8 Pro-K3 Wireless Handheld Microphone Kit

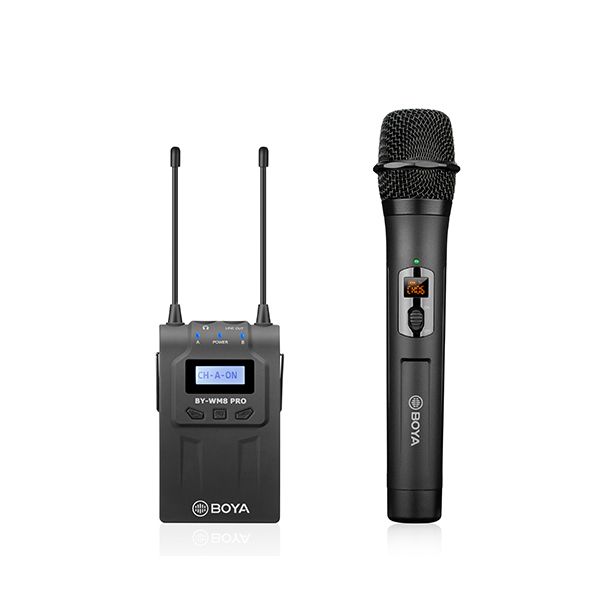

The Boya BY-WM8 Pro-K3 system consists of a handheld microphone transmitter (BY-WHM8 Pro) and a camera-mount receiver (RX8 Pro) plus accessories and a carry case.

The kit provides vloggers, mobile journalists, presenters and content creators with a cost-effective and quality-sounding wireless microphone system. Simple to operate with minimal setup, it lets you capture clear and natural speech for projects ranging from YouTube vlogs and streaming to presentations, lectures, wedding videos and interviews.

The RX8 Pro receiver is ready to plug into your DSLR or mirrorless camera, or audio recorder. The receiver's two-channel capability allows you to expand your system in the future with an additional transmitter and microphone (available separately) for 2-person interviews - with no additional receiver necessary. It runs for approximately four hours on two AA batteries.

The BY-WHM8 Pro is a UHF wireless handheld microphone transmitter, which can work with the RX8 Pro or SP-RX8 Pro. Featuring UHF transmission technology and optional 48 frequency bands, it is able to work smoothly in a signal-crowded scenario. The BY-WHM8 Pro features a cardioid dynamic capsule that allows it to accurately capture the target sound. Meanwhile, users can select group channel A or B through the easy-to-read LCD display. Like the RX8 Pro, it is also powered by two AA batteries.

* Handheld mic works with the RX8 Pro or SP-RX8 Pro
* UHF transmitter with 48 channels
* The cardioid dynamic microphone captures clean and natural sound
* It has an easy-to-read LCD display
* Group A and B are selectable
* It is powered by two AA batteries


Kit contents:
1x RX8 Pro dual-channel wireless receiver
1x BY-WHM8 Pro handheld microphone/transmitter
1x 3.5mm to 3.5mm output cable
1x 3.5mm to XLR output cable
1x Belt clip
1x Shoe mount adapter
1x Hard carry case


Specifications:

RX8 Pro Receiver
Antenna: 1/4λ Wire Antenna
Audio Input Connector: 3.5mm Mini Jack
Signal-to-Noise Ratio: 70dB or more
Distortion: 0.5% or less
Headphone Output Level: 30mW (16 Ω)
Audio Output Level: -60 dBV
Power Supply: Two AA Size Batteries
Operation Time: About 4 Hours
Size: 208 x 67 x 29mm
Weight: 90g Without Batteries

System
Oscillator Type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 556.71 MHz-575.98 MHz (Transmitter A) 576.39 MHz-595.66 MHz (Transmitter B)
Channels: 48
Frequency Response: 40 Hz to 18 kHz (+/-3dB)
Operating Temperature: -10°C to +50°C
Storage Temperature: -10°C to +55°C

BY-WHM8 Pro
RF Output Power: ≤10 mW
Antenna: 1/4λ Wire Antenna
Spurious Emission: 250nW or less
Audio Input Connector: 3.5mm Jack
Reference Audio Input Level: -60 dBV (MIC Input, 0 dB Attenuation)
Reference Deviation: ±5 kHz (-60 dBV,1 kHz input)
Input Frequency Range: 20Hz-20KHz
Distortion: 0.5% or less
Power supply: Two AA Size Batteries
Dimensions: 5.3 x 5.3 x 25.6cm
Weight: 252g (without batteries)


Download user manual from Attachments
