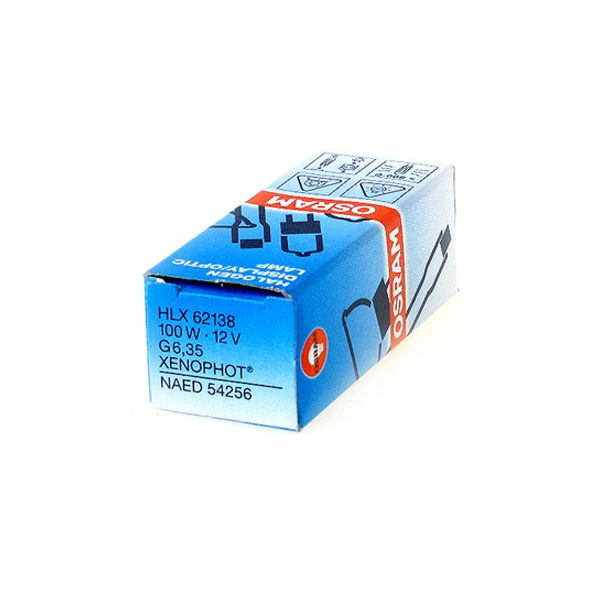

Lamp 12v 100w G6.35 Vertical Osram 62138

Categorization
Osram order reference: 62138 HLX

Electrical data
Nominal voltage: 12V
Nominal wattage: 100W

Photometrical data
Color temperature: 3350K
Nominal luminous flux: 3050 lm

Dimensions
Diameter: 11.5mm
Length: 37mm
Light center length (LCL): 27mm
Filament length: 2.4mm
Illuminated field: 2.4 x 1.8mm²
Filament diameter: 1.8mm

Additional product data
Base (standard designation): G6.35
Minimum diameter of lamp enclosure: 12mm
Burning position: p90 /p15
Lifespan: 50 hours

Areas of application
Lamps for special luminaires
Medical fiber optics (HLX)

Product family
Low-voltage halogen lamps without reflector

Product family features
Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
Luminous flux up to 10% higher with same power consumption (XENOPHOT HLX versions)
HLX tungsten halogen low-voltage lamp with or without reflector
Dimmable (HLX)

Product family benefits
Compared to standard lamps up to 10% higher luminous efficacy (HLX)
Instant light (HLX)

Download info sheet with specifications from Attachments
