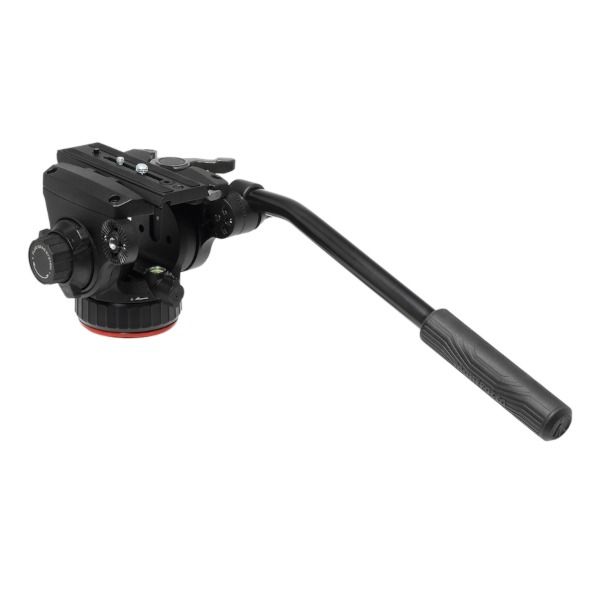

Manfrotto MVH502XAH 502X Video Fluid Head

Manfrotto 502X Fluid Video Head: Precision Fluid Movement for Professional Video for Mirrorless.

The Manfrotto MVH502XAH 502X Fluid Video Head is designed for professional videographers working with mirrorless cameras and compact camcorders. Part of the Manfrotto Bridging Technology range, it combines precise control, smooth movement and consistent stability in a compact, versatile design built for modern video production.

Smooth Movement. Precise control.
The Variable Continuous Fluid Drag System (FDS) on both pan and tilt delivers smooth, controlled movement for cinematic operation and accurate framing. Whether following movement, performing slow pans or adjusting composition during interviews, the 502X gives videographers precise control with consistent fluidity throughout every shot.

If greater camera control is needed the built-in Counterbalance System (CBS), optimised at 4.4kg at 55 mm centre of gravity, can be engaged and it helps keep camera setups balanced and controlled with reduced operator effort.

Fast Setup with Secure Balancing
The 504PLONG-type sliding plate with side-lock top attachment enables fast top-loading and quick balance adjustment directly on the head. Independent pan and tilt locks allow precise control in any shooting position, while integrated 3/8'' Easy Link attachments make it simple to mount monitors, arms, or accessories securely.

Built to Adapt
The 75mm flat base with 3/8'' mounting allows the 502X to move easily between traditional tripods, sliders, dollies and other support systems. Fully compatible with the Manfrotto XCHANGE quick release system, it enables fast equipment changes without interrupting the flow of production.

Designed for Professional Video Production
With an 8kg payload, adjustable fluid drag and stable camera control, the 502X is built for professional video applications including commercial production, documentary work, interviews, branded content and multi-camera shoots. It delivers the precision, consistency, and reliability required for demanding professional workflows.

* 502X fluid video head for mirrorless cameras and compact camcorders.
* Smooth pan and tilt with Variable Continuous Fluid Drag System
* Precise control thanks to counterbalance system
* 75mm base XCHANGE ready
* 3/8” Easy Link connectors for accessories, with anti-rotation

Colour: Black
Head type: Video/Fluid head
Material: Aluminium, plastic, rubber
Working height: 13.2cm
Counterbalance system: Variable steps
Counterbalance weight: 0, 4.4kg
Centre of gravity: 55mm
Base diameter: 75mm
Ball flat: Flat
Bubble Spirit Level: 1
Top Attachment: 1/4” screw, 3/8” screw attachment type
Front tilt: -70° / +90° tilt range
Panoramic rotation: 360°
Pan bar included: Yes
Pan drag: Continuously adjustable from 0 to max level
Tilt drag: Continuously adjustable from 0 to max level
Quick release: Yes
Plate type: 504PLONG
Easy Link: No
Accessory compatibility: MAONEQR-PLATE, MAONEQR, MAONEQR-ADPFB60
Safety payload: 8kg
Weight: 1.72kg

Download user manual from Attachments
