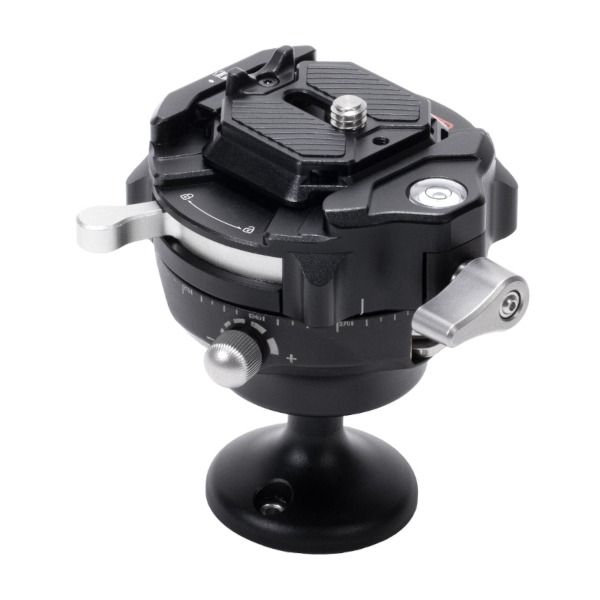

Ulanzi Falcam F38 Pro Quick Release Trigger Inverted Ball Head (320P)

The Falcam F38 Pro Quick Release Trigger Inverted Ball Head (320P) from Ulanzi (F38B4303) is a stable quick release ball head with trigger lock, inverted 320P design, degree markings, bubble level for precise framing and maximum load capacity of 5kg. Sold, swift and superior.

Next-Generation F38 Pro Quick Release
The integrated F38 Pro quick release receiver is compatible with F38-type plates, and also fully compatible with 90% of standard Arca-Swiss type quick release plates.

Compatible with Third-party Tripod
The head supports 3/8" and 1/4" screws adapters. It comes with top screw for secure fixture installation.

Next-Generation F38 Pro Quick Release
Enjoy outstanding compatibility and adaptability. The F38 Pro is compatible with 90% of standard Arca-Swiss quick release plates. Pressing down on the plate triggers the pull pin to automatically lock it in place in one step. You can even mount the camera directly when the tripod is not deployed. Note: To ensure extreme locking during use, it is recommended to align the camera lens with the directional indicator marked on the F38 ball head when attaching the camera.

Compatible with Long Arca-Swiss Quick-Release Plates
Enjoy convenient leveling for large equipment. The recommended maximum load capacity is around 5kg. The maximum torsional strength is a round 6N·m.

Quick Release Interface Anti-Slip Protection Mechanism
The quick-release ball head interface contains adaptive limit column and slot designs  that are compatible with most Arca-Swiss quick-release plate limit structures, providing anti-slip protection.

Click Damping Micro-Adjustment
This feature allows for exact and smooth operation of the ball head, and more direct and precise composition control. You can feel the rotation of the mechanical gear when adjusting the knob.

Locking Control Trigger
Simply break it to a certain angle. Perceptible plate buckle automatically pops up. Anti-pinch design, comfortable and labour-saving operation.

Dual Panorama Adjustment Modes
This head supports both horizontal panoramic and vertical shooting, with adjustable damping for precise control. Each locking knob provides tactile and audible cues, allowing for accurate operation of the ball head in dim light. Enjoy 360° ball head rotation, 360° horizontal panning and vertical shooting.

Quick Release Plate Anti-Deflection Design
Equipped with the F38 anti-deflection quick release plate V2, featuring an anti-loosening washer and a POM material bumper, which ensure reliable protection against both twisting and abrasion, guaranteeing a steadfast camera mounting. Features of the plate include anti-deflection baffle, graphite nylon gasket and stainless steel gasket.

* Stable inverted 320P design
* Next generation F38 Pro quick release
* Compatible with most Arca-type plates
* Anti-slip limit protection feature
* Adjustable friction control
* Bubble level
* 360°  ball head rotation, 360° horizontal panning, vertical shooting
* 5kg load capacity

Included in the box: Falcam F38 Pro Quick Release Trigger Inverted Ball Head (320P), F38 Anti-slip Quick Release Plate V2, M2*5 T6 Socket Button Head Screw, Anti-deflection Tab, Anti-deflection Positioning Screw, Stainless Steel Anti-loosening Washer, Nylon Anti-loosening Washer, Hex Wrench, H2.5*T6 Dual-purpose Wrench

Colour: Black
Material: Carbon Fiber and Aluminium Alloy
Tripod model: 320P
Recommended maximum load: 5kg
Ball head diameter: 32mm
Tilt range: 0-90°
Horizontal adjustable range: 360°
Torsional strength at maximum damping: Around 4N.m
Maximum torsional strength: Around 6N.m
Panoramic clamping force: Around 5N.m
Quick release plate compatibility: More than 90% of Arca-Swiss standard quick release plates
Bubble level: Yes
Dimensions: 7.72 x 7 x7.58cm
Weight: 280g

Ulanzi SKU: F38B4303
