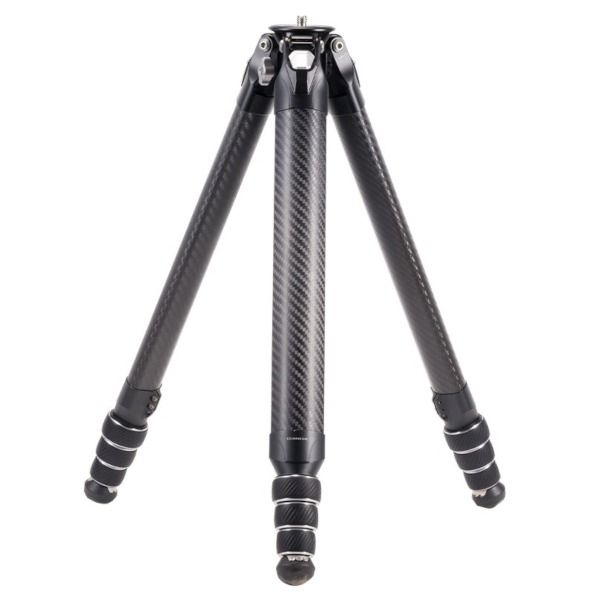

Ulanzi Falcam TreeRoot Quick Lock Travel Tripod (R141K-A130)

The Falcam TreeRoot Quick Lock Travel Tripod R141K-A130 delivers solid, swift and superior carbon fibre support. Key features include Reuleaux triangle tube for an innovative combination of portable and stability; 1/3 limited lock with operation maintained precisely even in the dark; quick release centre column that can be removed without tools to easily enable low-angle shooting; all-terrain trident foot pegs for stable support; abundant expansion interfaces including F22 quick-release, 1/4" Arri expansion, threaded hole and carry strap hole. This version is tripod only – no head included.

Reuleaux Triangle Tube: next-level comprehensive performance
This design pioneers the integration of anisotropic and round tubes, enhancing both portability and overall stability. The design ensures a sleek, flush fit during storage with contours that naturally fit the hand. Notably, it offers better comprehensive stability at the bottom than comparable cylindrical tubes of the same diameter
* TreeRoot: compact structure, edgeless, comfortable grip, portability
* Compared to conventional: cylindrical tube storage structure is not compact and has poor grip
* TreeRoot:  balanced stress distribution on all four sides, enhanced rigidity, greater stability
* Compared to conventional: the non-circular shape results in uneven stress distribution on all sides, the rigidity is weaker than that of a cylindrical tube

M40 High Modulus Carbon Fibre Material
The tripod is crafted from M40 high modulus carbon fibre, a material that delivers an over 60% increase in Young's modulus compared to T300 when considering fibres of equal single filament diameter. This advanced composition confers superior tensile strength and bending resistance to structural components, ensuring steadfast support for creative work and sharp image capture.

1/3 Limited Quick Lock
The quick lock can be easily grasped with one hand, requiring only a twist of approximately one-third of a turn to quickly unfold or store the legs.
* Operation maintains precisely even in the dark: the leg locks contain a built-in limit structure to avoid unintended disassembly caused due to confusion in the locking direction during use. At the same time, it can also avoid the problem of leg tubes falling off due to accidental scratches during carrying.
* Resists jamming in sandy and windy environments: Legs are equipped with built-in O-rings for sealing, which significantly reduce the ingress of sand and dust into the legs from above.
* Increased locking force: in small diameter legs, trigger locks may lead to the formation of gaps, but TreeRoot employs a 360° uniformly stressed rotational locking mechanism, providing a stronger locking force. The rotational design distributes force uniformly at 360° while  flip-lock designs result in uneven stress distribution.

Compatible with External Photo/Video Ball Head
The tripod features 1/4" and 3/8" adaptable screws for versatile mounting. The  top screws ensure added ball head stability and prevent tilt."

Quick Release Centre Column
This tripod allows effortless execution of low angle shooting. Initial quick-release centre column with butterfly latch design allows for tool-free removal from the bottom, instantly transitioning to low-angle shooting, ensuring smooth and uninhibited creative expression.
* Low angle shooting
* Inverted centre column shooting

Multifunctional Hook
The hook is equipped with a slotted/ hexagonal screwdriver and can also be used to hang backpacks, water bottles, and other items. Supplied with both 1/4" & 3/8" screws, it also supports the use of either long or short centre column.
* 1/4" Thread
* 3/8" Thread
* H4 Slotted Wrench
* Slotted Wrench

Tri-prism Openwork Design
Inspired by the neutral plane concept in structural mechanics, the centre column is designed to ensure rigidity while significantly reducing weight, making creation more effortless.

All-terrain Trident Foot Pegs
Multi-faceted rubber footpads provide stable support on various surfaces while protecting sensitive floorings like tiles and wood. After removing the rubber footpads, the three-pronged spikes can ensure stable footing on soft carpets or ice interfaces.

Abundant Expansion Interfaces
Equipped with F22 quick-release interfaces, 1/4" Arri expansion threaded hole, carry strap holes, and compatibility with Maglink quick-release buckle.

Three-level Angle Adjustment System
Each leg adjusts to 3 positions, meeting various shooting angles for flexible photography needs. The 4-section leg extension delivers a more stable structure.

Tripod Bag
Employing cationic dyeable polyester and high-density neoprene materials, the bag offers reinforced protection. The interior houses dual pockets, accommodating both long and short centre columns and additional tools.
* The handle and shoulder strap design allows for cross-body  carrying and easy placement on top of luggage or backpacks.
* The interior houses dual pockets, accommodating both long and short centre columns and additional tools.

Included in the box: Ulanzi Falcam TreeRoot Quick Lock Travel Tripod R141K-A130 (Dark Grey), 2x T00SP014 H4 Hex Wrench, G01SP005 Hex Wrench, 102SP013 T8 L-shaped Wrench, 3x T00PP017 Primary Limit Sleeve, 3x T00PP018 Secondary Limit Sleeve, 3x T00PP019 Tertiary Limit Sleeve

Colour: Dark Grey
Material: Carbon fibre and aluminium alloy
Number of leg sections: 4
Minimum height: 13.5cm
Height without lifting centre column: 127cm
Height with centre column extended: 151.5cm
Closed length: 44.5cm
Maximum static vertical load (leg tubes): 50kg
Maximum load capacity (centre column down): 20kg
Maximum load capacity (centre column extended): 10kg
Weight: 1.3g

Model no: R141K-A130
Ulanzi SKU: T00A4302
