Used Boya BY-XM6-S1 2.4GHz Ultra-compact Wireless Microphone System

What is a used deal?
This means the product shows signs of use and is therefore sold at a greatly reduced price. In some cases, the item may have damaged or missing retail packaging too. The product has been quality checked and confirmed in usable but secondhand condition.

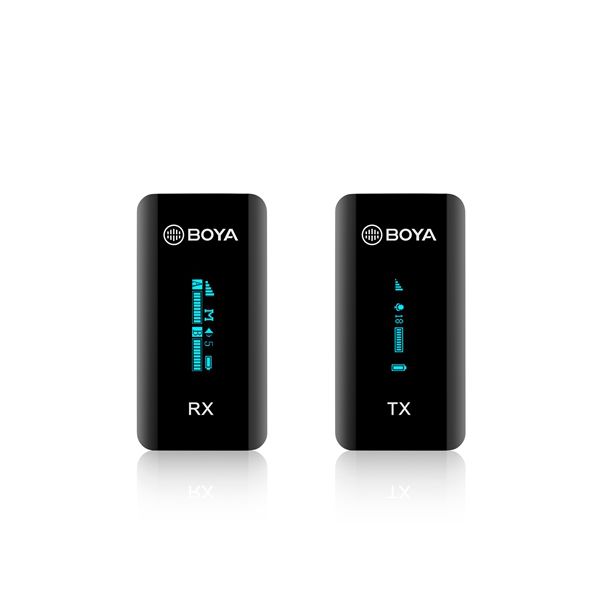

The Boya BY-XM6-S1 is an ultra-compact 2.4GHz dual-channel wireless microphone system consisting of one transmitter and one receiver. It’s a perfect sound capturing and delivering solution for one-person vlog, YouTube video, live streaming, interview, recording, etc.

Advanced Technology for Stable Signal Transmission
The BY-XM6-S1 series adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6-S1 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m.

Professional Audio Capturing and Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6-S1 captures and delivers Hi-Fi and low-noise audio.

Ultra-Versatile and Easy-to-Use Wireless Microphone Kit
With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN input jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable, so it can work with your DSLR or mirrorless camera, smartphone and computer.

* Ideal for one-person vlog, YouTube video, live streaming, interview, recording, etc.
* Compatible with DSLR, mirrorless camera, smartphone and computer
* 2.4GHz wireless dual channel signal transmission technology
* Hi-Fi and low-noise audio processing and delivering system
* Built with easy-to read, vivid, and informative OLED display
* Built-in omnidirectional microphone and lavalier microphone on transmitter
* Headphone output jack on receiver for real-time monitoring
* Stereo and mono outputs are available and switchable on receiver
* Built-in Li-ion batteries for 7h use on transmitter and 6.5h use on receiver
* Up to 100m operation range without obstacles

Kit contents:
1x BY-XM6 RX Receiver
1x BY-XM6 TX Transmitter
2x USB-C Charging Cable
1x Lavalier Microphone
1x Mic Clip for Lavalier Microphone
1x Foam Windscreen for Lavalier Microphone
1x Fur Windshield for Built-in Microphone
1x 3.5mm TRS to TRS Output Cable for Cameras
1x 3.5mm TRS to TRRS Output Cable for Smartphones

Specifications:

BY-XM6 TX Transmitter
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range (without obstacle): Up to 100m
RF Output Power: ＜10mW
Polar Pattern: Omnidirectional
Frequency Response: 50Hz-18KHz
Maximum SPL: Built-in Microphone 120dB SPL / Lavalier Microphone 110dB SPL
Sensitivity: Built-in Microphone -39dB / Lavalier Microphone -39dB
SNR: > 84dB
Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life: Approx. 7 hours
Antenna: PIFA Antenna
Audio Inputs: 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
Weight: Approx. 32g
Dimensions: 62.1 x 31.6 x 16.5mm
Operating Temperature: –10°C to 50°C
Storage Temperature: –20°C to +55°C

BY-XM6 RX Receiver
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range (without obstacle): Up to 100m
Audio Output Connector: 3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level: –60 dBV to -20dBV
Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life: Approx. 6.5 hours
Antenna: PIFA Antenna
Weight: Approx. 32g
Dimensions: 62.1 x 31.6 x 16.5mm
Operating Temperature: –10°C to 50°C
Storage Temperature: –20°C to +55°C
