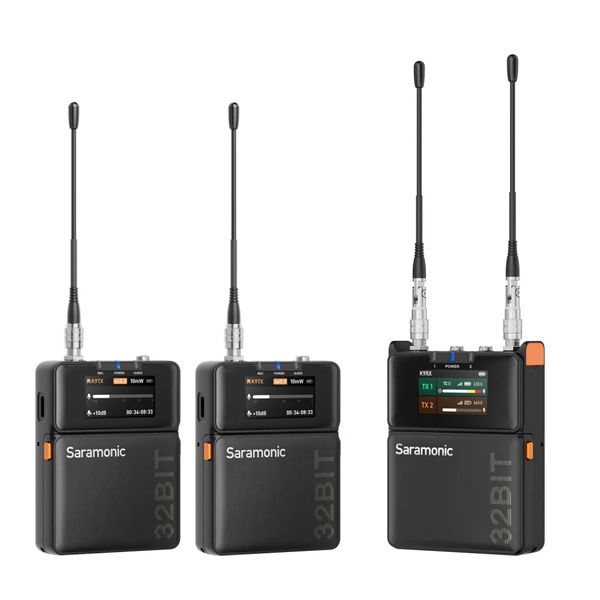

Saramonic K9 Dual-Channel Digital UHF Wireless Audio System for Filmmakers

Meet K9, Saramonic’s first digital UHF wireless microphone for professional filmmakers. Featuring an ultra-wide 550-960MHz UHF spectrum and audio frequency scanning, it resists interference in crowded RF clutter. With digital transmission, a 130dB dynamic range, and 32-bit float onboard recording, the system captures detail-rich recordings and ensure safe backup. Timecode-enabled, K9 syncs with cameras down to the frame, eliminating manual syncing in post-production. The 3mm diameter ultra-miniature lav mic delivers unmatched durability, and flawless sound in any environment. With Saramonic System, all info and configurations are taps away on the phone, giving recordists easy full control.

Incredibly Stable
Using the reliable UHF spectrum with GPS-based frequency updates, the K9 digital wireless microphone system outperforms 2.4GHz with superior interference resistance. Auto frequency scanning finds the cleanest channel, ready for global action.

Every Sound, Pristine
Record in cinematic quality. Digital transmission ensures no audio quality loss, while a 130dB input dynamic range perfectly captures everything from shouts to whispers, and the 120dB analogue output reproduces sonic detail. True, clear and immersive.

Small, Rugged, Ready for Action
The K9 comes with the smallest 3mm miniature lavalier mic in the industry, easy to hide so you can seamlessly fit it into your on-camera look. Featuring IP67 dust and water resistance and Kevlar-reinforced cabling, it stands up to everything from rain to desert and the wear-and-tear of daily use.

Make Every Sound Heard
Unexpected audio spikes or whispers on set? No compromises. With K9’s 32-bit onboard recording, fix it all in post - every detail, whether clipped or too quiet. With 32GB of storage, your audio is safe, so you can tell your story with peace of mind.

Sync Effortlessly, Work Faster
Audio and video drift apart? K9’s timecode keeps everything in sync. Wirelessly connect to a timecode generator (purchased separately) via Saramonic System - one tap aligns all devices to the exact frame, or use a 3.5 mm wired connection to sync with 3rd-party gear. No more manual post-production headaches.

Take Total Device Control
Introducing Saramonic System, an audio smart control app that makes the K9 work more efficiently. You can remotely control up to 48 devices - manage device groups, activate sleep mode to extend battery life, update firmware version and much more. Everything you need is right at your fingertips.

Pure Design, All on Point
Inspired by Nordic minimalism, the K9 is sleek yet powerful. The receiver features a 1.47" colour display and an innovative top screen, making it easy to read at a glance, even in direct sunlight. Hidden buttons prevent accidental presses, and 8 coloured tags help you quickly identify devices. So you can focus on the story, not the gear. And the durable metal bodypack transmitter is lighter than a phone at 125g, ensuring comfort movement for actors during shoots.

Power Through the Day
The K9 transmitter lasts up to 9 hours, and the receiver up to 8 hours. You can swap batteries in a snap - compatible with multiple types - or power via USB-C while recording, keeping the sound rolling nonstop. For eco-friendly workflows, opt for rechargeable batteries and an 8-slot charging dock. Power your day, your way.

Fits Every Setup
The K9 comes with a variety of adapters, compatible with cameras, recorders, computers, mixers and phones, offering versatile use in various settings to meet your needs. Great for  recording, live streaming and stage shows.

* Ultra-wide 550-960MHz UHF for anti-interference performance across the globe
* High dynamic range (130dB input & 120dB analogue output) and digital transmission for uncompressed recordings
* 32-bit float onboard recording with 32 GB storage for secure backup
* Timecode sync: wirelessly via Saramonic System or wired via 3rd-party TC box
* Saramonic System:  up to 48 devices’ control and info hub on your phone
* IFB allows directors to monitor actor sound in real time without waiting for playback

K9 contents:
2x Transmitter (K9-TX)
1x Receiver (K9-TX)
2x Lavalier Microphones
2x SMA Elbow Antenna
2x SMA Antenna
2x 3.5mm TRS to XLR Audio Cable
1x 3.5mm TRS to TRS Audio Cable
1x USB-C to USB-C Data Cable
1x Cold Shoe Mount
1x Belt Clip for RX
2x Belt Clip for TX
2x Foam Windscreen for Lavalier Microphone
2x Fur Windshield for Lavalier Microphone
2x Lavalier Microphone Clip
1x Weather-Sealed Carrying Case for Lavalier Microphones
3x Lithium-Ion Battery Pack
1x USB-C to USB-A Adapter
2x 32GB MicroSD Card
16x Coloured Tag for Transmitter
16x Coloured Tag for Receiver
1x Portable Carry Case

Specifications:

Transmitter (K9-TX)
RF Modulation: Proprietary Digital RF Modulation
RF Freq Range: 550MHz to 960MHz (Assign local legal frequency bands based on the region)
RF Power: 10mW, 25mW, 50mW, 100mW
RF Frequency Step: 100KHz
RF Bandwidth: 200KHz
Channel RF Spacing: 700KHz
Antenna Connector: 50 Ω SMA
Dynamic Range: 130dB
Distortion: <0.5%
Frequency Response: 20Hz to 20KHz
Low Cut: 0FF, 75Hz, 100Hz, 150Hz
Mic Power: MIC-3 V, MIC-5 V, LINE
Mic Connector: 3.5mm TRS
Gain Range: 0dB to 30dB
ADC Sampling Rate: 48KHz
Bit Depth: 24 bit
Clock Accuracy: 0.15 PPM (1 frame out in 48 hours)
Timecode Type: LTC (SMPTE)
Timecode Framerate: 23.98, 24, 25, 29.97, 29.97DF, 30
Media: MicroSD Card (Up to 256GB)
File Format: Wav
Sampling Rate: 48KHz
Record Format: 24-bit or 32-bit Float
EIN: -132dBV (-130dBu) max (A-weighting, gain= 30 dB, 150 ohm source impedance)
Power Supply: External Battery / Power
Battery Life: Up to 9+ Hours with 2 NICE AA
Dimensions: 80 x 62 x 19mm
Weight: 85g (excluding batteries and antenna), 120.5g (including batteries and antenna)
Operating Temperature: -20°C to +45°C
Storage Temperature: -30°C to +60°C

Receiver (K9-RX)
RF Modulation: Proprietary Digital RF Modulation
RF Freq Ranges: 550MHz to 960MHz (Assign local legal frequency bands based on the region)
RF Power: 10mW, 25mW, 50mW, 100mW
RF Frequency Step: 100KHz
RF Bandwidth: 200KHz
Channel RF Spacing: 700KHz
Antenna Connector: 2x 50 Ω SMA
Receiver Audio: Analog Output (x 2)
Analog Output Dynamic Range: 120dB
Distortion: <0.5%
DAC Bit-Depth: 24 bit
Output Type: Mono, Stereo, Headphone
Power Supply: External Battery / Power
Battery Life: Up to 8+ Hours with 2 NICE AA
Dimensions: 88.1 x 66.1 x 23.6mm
Weight: 112g (excluding batteries and antenna), 157.5g (including batteries and antenna)
Operating Temperature: -20°C to +45°C
Storage Temperature: -30°C to +60°C

Lavalier Microphone
Polar Pattern: Omnidirectional
Max SPL: 118dB
Dynamic Range: 110dB
Sensitivity: -35dB (1.5V, 2.2K, at 1KHz)
Equivalent Noise Level of Self-Noise: Typ 25dB (A-weighted, Equivalent Sound Pressure Level))
Signal-to-noise Ratio: >68dB
Operating Voltage: 1.3V to 5.0V
Frequency Response: 20Hz to 20KHz
Distortion: <3%
Weatherproof Standard: IP67
Tensile Performance: ≥50 N
Tensile Strength: Maximal pulling force ≥50 N
Electromagnetic Interference Resistance: Passed EMI testing, suitable for complex
environments such as stages and lighting interference scenarios
Connector Locking: 3.5mm
Mic Input Compatibility: Locking 3.5 mm TRS with Sennheiser Pin-Out
Mic Head Size: 3 x 17.5mm
Cable Length: 1.8m
Weight: 11g
Operating Temperature: -30℃ to +60℃

Download brochure and user manual from Attachments
